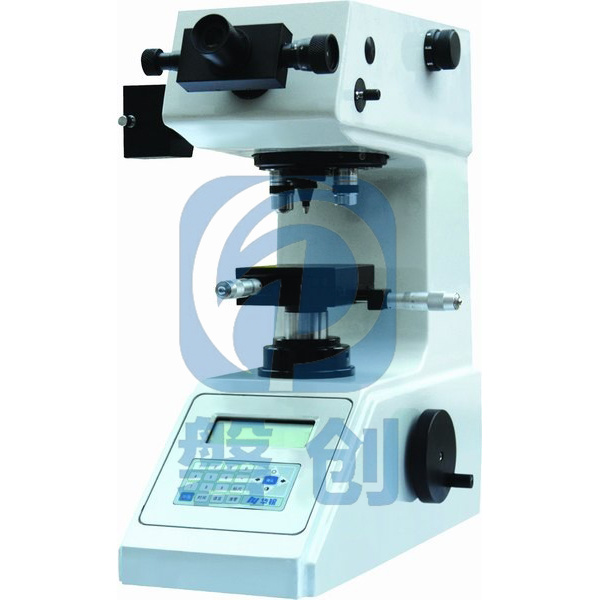

Microhardness Tester
Main functions
Automatic turret switching between penetrator and objective lens.
Frictionless loading shaft, high precision testing force.
Automatic testing process, no human operating error.
Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E384.
It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.
Main specification
1. Hardness measuring range: 5-3000HV
2. Test force: 0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N
(10, 25, 50, 100, 200, 300, 500, 1000gf)
3. Hardness scale: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
4. Magnifications of the measuring system: 400X(measuring), 100X(observing)
5. Min. scale value of the optical micrometer: 0.025μm
6. Measuring range: 200μm
7. Max. height of test piece: 75mm
8. Depth of throat: 110mm
9. Power supply: 220V AC or 110V AC, 50 or 60Hz
10. Dimensions: 470 x 320 x 500mm
11. Weight: approx. 40kg
