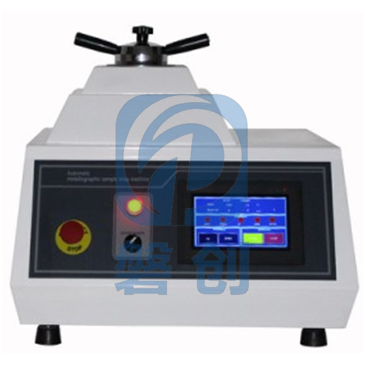

Automatic Metallographic Inlaying Machine - with Water Cooling
Main functions
The purpose of the metallographic specimen inlaying machine is to obtain the required detection plane by inlaying the samples whose shape or size are not suitable for the subsequent sample preparation steps. Or to protect the edges or prevent surface defects caused by the preparation process. In the modern metallographic laboratory, the semi-automatic or automatic grinding/polishing machine which is widely used has requirements on the sample size. In order to meet these requirements, the sample must be inlaid, so the inlaying machine has become one of the necessary equipment in the metallographic laboratory.
Belong to automatic metallographic specimen inlaying machine, machine with the in and out of the water cooling function, apply to all material (thermoset and thermoplastic) hot Mosaic, set the heating temperature, holding time, such as force parameters, the Mosaic in the sample and Mosaic materials, covered with gland, press the button to work, can be automatically set to work, not beside the machine unattended operation personnel. According to the different requirements of the samples can be arbitrarily selected replacement of four specifications of mold, can also press two samples at the same time, the preparation capacity doubled.
Main specification
1. Mould size: φ25mm, φ30mm, φ40mm, φ50mm
2. Power: 220V 50HZ
3. Power consumption: 1600W
4. System pressure setting range: 0~2MPa (Pressure range: 0~72MPa)
5. Temperature setting range: 0~300℃
6. Insulation time setting range: 0~99 minute 99 second
7. Dimension: 615×510×500mm
8. Weight: 110kg
9. Cooling method: water-cooling
