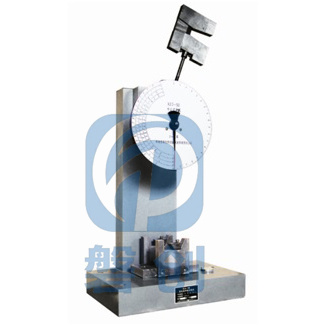

Charpy Impact Tester
Main functions
XJJ-50 Pendulum Impact testing machine is used to test or determine the anti-impact capacity of non-metal materials, such as hard plastic, enhanced nylon, ceramic, toughened glass and dielectric etc. Be adopted by scientific research institutes, colleges, universities and many non-metallic materials manufactures and laboratories.
This machine is developed according to the standard of ISO180. Also, it has advantages of simple in structure, easy to operate and high accuracy.
Main specification
Model | XJJ-50 |
Impact velocity | 3.8 m/s |
Pendulum energy | 7.5J 15J 25J 50J |
Rising angle | 160° |
Distance between centers of pendulum and specimen | 380mm |
Pendulum moment | 7.5J PL=3.866Nm 15J PL=7.733Nm 25J PL=12.889Nm 50J PL=25.777Nm |
Dial scale | 0-7.5J minimum scale: 0.075J 0-15J minimum scale: 0.15J 0-25J minimum scale: 0.25J 0-50J minimum scale: 0.5J |
Corner dimension of striking edge | 30° |
Round angle radius of striking edge | R=2mm |
Specimen | conform to ISO180 |
