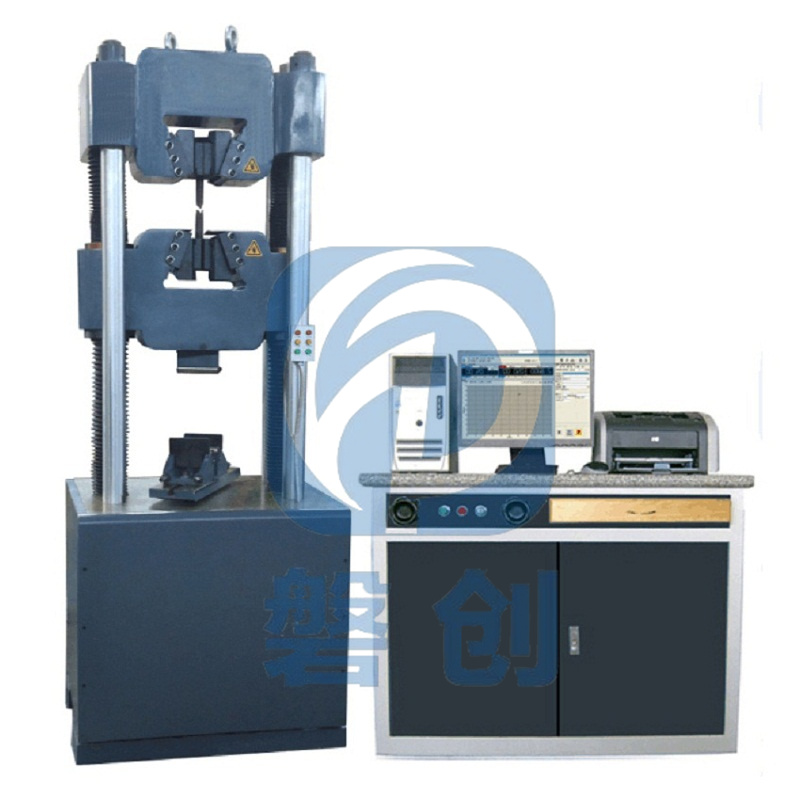

WEW-300G Computer Screen Display Hydraulic Universal Testing Machine
Main functions
WEW-300G computer screen display hydraulic universal testing machine is mainly used for the mechanical properties of metal materials, non-metallic materials, can meet the national standards, test and data analysis for users, widely used in scientific research institutes, colleges and universities, industrial and mining enterprises, technical supervision, commodity inspection department.
The hydraulic valve is manually controlled to drive the precision cylinder, and the cylinder is processed by nodular cast iron and sealed by gap. The test force, displacement and deformation are controlled to complete the tensile, compression, bending and shearing tests, which meet the requirements of GB/ T228-2002 "Tensile Test Method for Metal Materials at Room temperature" and GB/T7314-87.
Main specification
Model | WEW-300G |
Max testing force | 300kN |
Test range of force range | 2%—100% FS |
Accuracy of test force | Better than ±1% of the shown value |
Displacement resolution | 0.001mm |
Maximum distance between jaws | 550mm |
Clamp thickness of flat sample | 0-15mm |
Round sample clamping diameter | φ6-φ13mm, φ13-φ26mm |
Compressed space | 500mm |
Effective test width | 480mm |
Piston stroke | 250mm |
Piston speed | 100mm/min |
Clamping way | Hydraulic clamping |
Machine size | 860×720×2200mm |
Machine weight | 2800kg |
