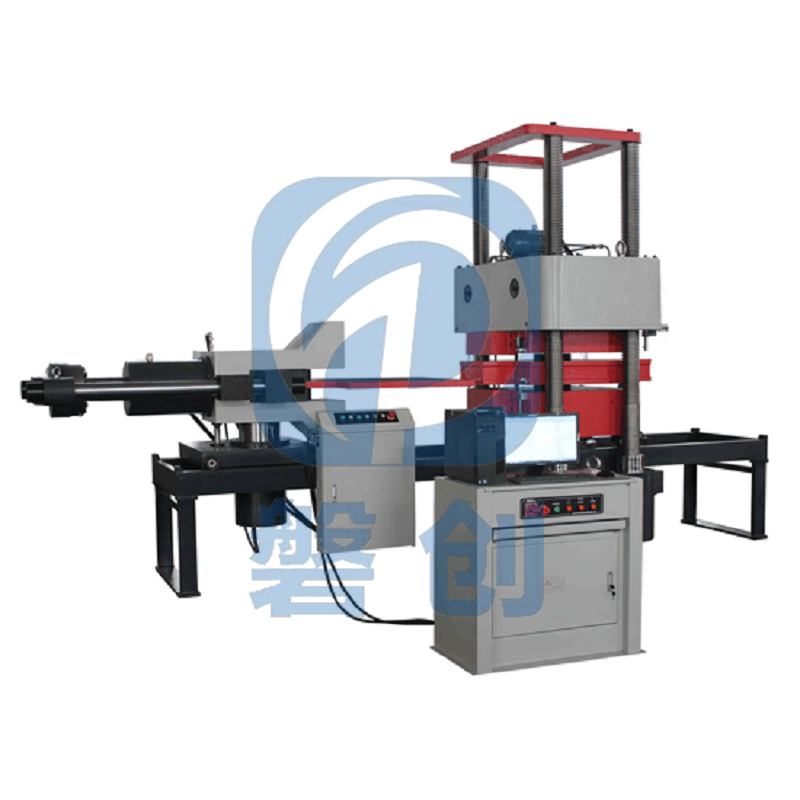

Computer Control Electro-hydraulic Servo Pressure Shear Testing Machine
Main functions
This machine is specially used for testing mechanical properties of finished plate rubber bearing of highway bridge. It can detect axial compression deformation and radial deformation under compressive elastic modulus test, shear elastic modulus test, allowable shear Angle test, ultimate compressive strength test, friction coefficient test, allowable Angle test and load test of basin rubber bearing of highway bridge. The precision of this machine is in line with JJG175 pressure and universal material testing machine verification requirements.
The main machine adopts four column structure, high rigid strength of the frame, easy to measure the elastic deformation of the sample. Microcomputer control automatic continuous steady load, load, automatic data acquisition, storage, map curve, automatic printing test report, can be made the bridge rubber bearing compressive elastic modulus test, shear elastic modulus test, shear adhesive properties, shear ageing, the coefficient of friction, Angle test, the ultimate compressive strength test, the permissible corner test.
Main specification
Vertical loading part | |
Model | TYW-20000J |
Maximum test force | 20000kN |
Relative error of test force | ≤±1% of the value shown |
Test force measurement range | 1%-100%FS |
Compression space | 1500mm |
Maximum speed of piston at no load | 40mm/min |
Piston stroke | 300mm |
Displacement measuring range | 0-300mm |
Displacement accuracy | ±1% |
Deformation measurement | Four grating digital displacement sensors measure the vertical deformation of samples |
Four grating digital displacement sensors measure the radial deformation of samples | |
Upper and lower pressing plate dimensions | 1350×1350mm |
Beam lifting speed | 200mm/min |
machine size | 5000×2340×5150mm |
Transverse shear section | |
Model | YAW-20000J |
Maximum shear test force | 4000kN |
Relative error of test force | ≤±1% of the value shown |
Test force measurement range | 2%-100%FN |
Piston stroke | 300mm |
Displacement measuring range | 0-300mm |
Displacement accuracy | ±1% |
Two grating digital displacement sensors measure transverse shear deformation of specimens | |
Deformation measuring range | 0-150mm |
