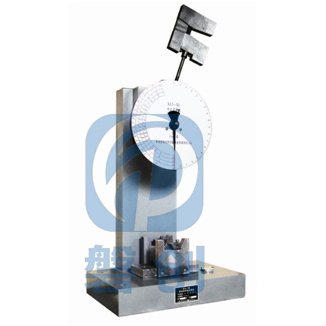

Charpy Impact Tester
Main functions
XJJ-5 Pendulum Impact testing machine is used to test or determine the anti-impact capacity of non-metal materials, such as hard plastic, enhanced nylon, ceramic, toughened glass and dielectric etc. Be adopted by scientific research institutes, colleges, universities and many non-metallic materials manufactures and laboratories.
This machine is developed according to the standard of ISO180. Also, it has advantages of simple in structure, easy to operate and high accuracy.
Main specification
Model | XJJ-5 |
Impact velocity | 2.9 m/s |
Pendulum energy | 1J 2J 4J 5J |
Rising angle | 160° |
Distance between centers of pendulum and specimen | 380mm |
Pendulum moment | 1J PL=0.516Nm 2J PL=1.031Nm 4J PL=2.062Nm 5J PL=2.578Nm |
Dial scale | 0-1J minimum scale: 0.01J 0-2J minimum scale: 0.02J 0-4J minimum scale: 0.04J 0-5J minimum scale: 0.05J |
Corner dimension of striking edge | 30° |
Round angle radius of striking edge | R=2mm |
Specimen | conform to ISO180 |
