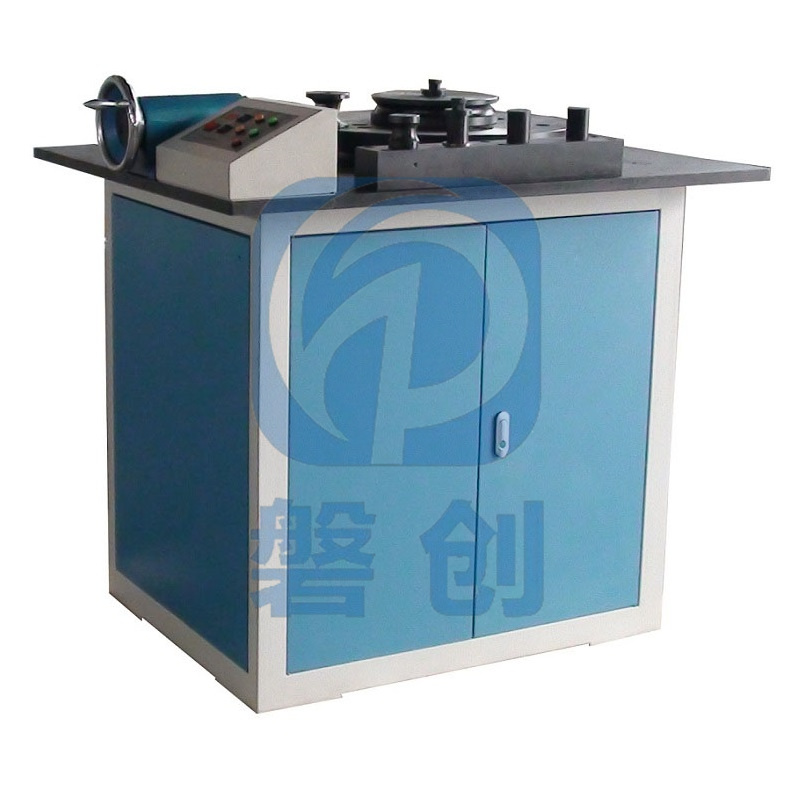

Steel Tube Bending Testing Machine
Main functions
GGW-50 Steel Tube Bending Testing Machine can be used to do forward and backward bend test on plane. It is the important equipment to test. It is an important equipment to test the recurvating character of screw thread steel bar in steel factory and architectural company. It can be used to bend the steel bar on-site so that test and construct can be done in one machine. The testing machine has many advantages, such as small size, compact structure, easy operation, low noise, smooth and steady running, directly bend angle display and easy lubricating, especially reasonable design of limit position and easily damaged parts, so it has a long using time.
Standards:
ISO 8491-1998 Metallic materials-Tube (in ful section)-Bend Test
ISO 6935-2-1991 Steel for the reinforcement of concrete; part 2: ribbed bars
GB1499.2-2007 Steel for the reinforcement of concrete; part 2: ribbed bars
Main specification
1. Max of bending diameter: φ50mm
2. Angle of steel forward bend: 0°-180°at will
3. Angle of steel backward bend: 0°-90°at will
4. Rotating speed of working plate: ≤ 3.0 r/min
5. Distance of roller center: 165mm
6. Diameter of working plate: φ760mm
7. Motor power: 1.5KW
8. Dimension: 1150×940×1100mm
9. Weight: 1200kg
