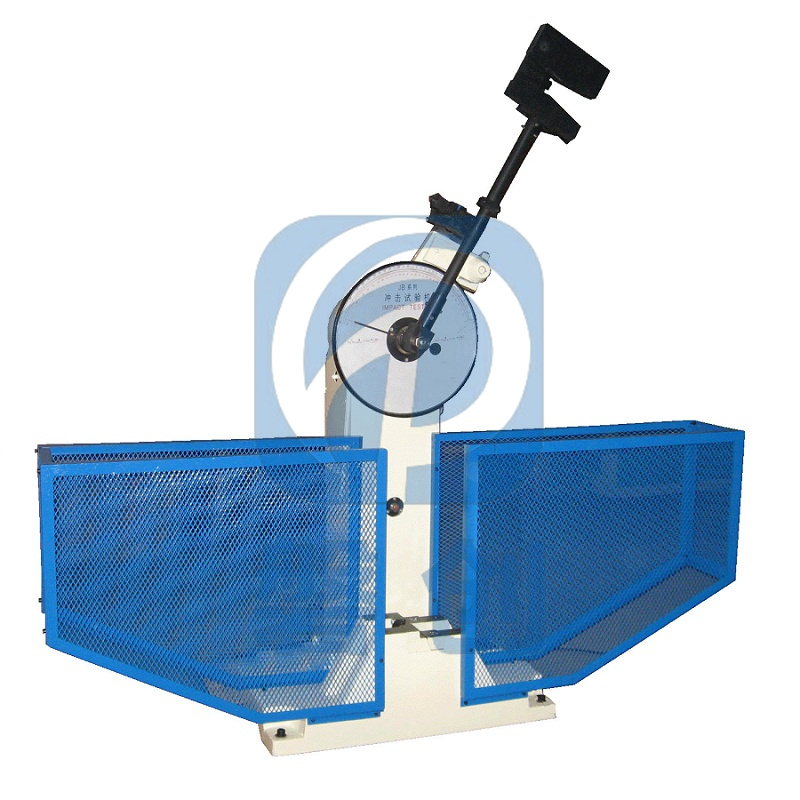

Semi-automatic Pendulum Impact Testing Machine
Main functions
JB-500B Semi-automatic Pendulum Impact Testing Machine is used to determine the impact toughness of metal materials under dynamic load. The pendulum of the machine can be raised or released automatically. They are designed according to the international standards ISO148-2006, ASTM E23, and GB/T 229-2007. They have the features of easy operation, high efficiency, safe and reliable. The machines are especially suitable for laboratory, metallurgy industry, machinery production, steel plant and other fields.
JB-500B impact testers are strictly designed according to the standards ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007, etc.
Main specification
Model | JB-500B |
Impact energy | 250J; 500J |
Impact velocity | 5.4m/s |
Raised angle | 150º |
Standard span | 40mm |
Distance between pendulum rotating center and specimen center | 800mm |
Round angle of jaws | R1-1.5mm |
Round angle of striking edge | R2-2.5mm |
Size of specimen | 10 x 10 x 55mm |
Power supply | 3phs, 380V, 50Hz |
Dimensions | 2230 x 640 x 1480mm |
Net Weight | 600kg |
